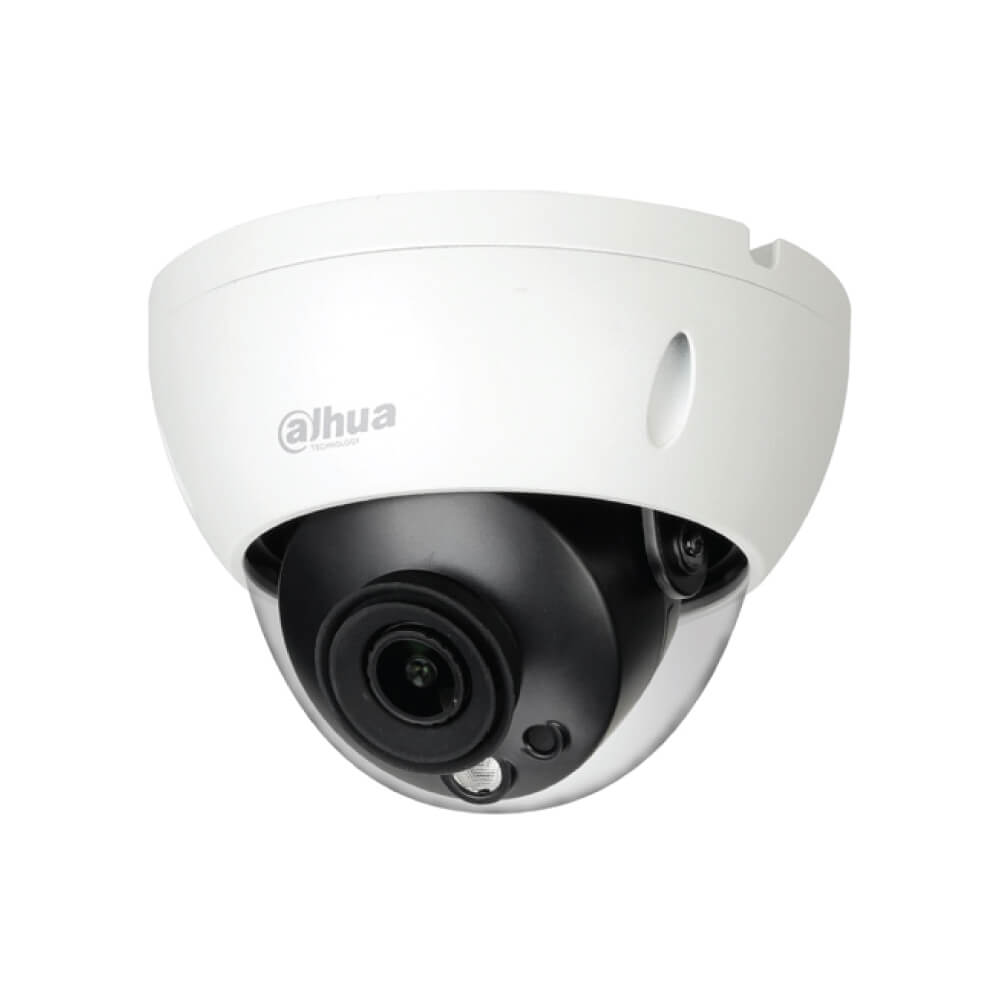

กล้องวงจรปิด IP AI อัจฉริยะ 2MP DH-IPC-HDBW5241R-ASE

Image Sensor

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS

Max. Resolution

1920(H) x1080(V)

RAM/ROM

512MB/128MB

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Min. Illumination

0.002 Lux@F1.6

S/N Ratio

> 56 dB

Illumination Distance

Distance up to 50 m (164 ft)

Illuminator On/Off Control

Auto/ Manual

Pan/Tilt/Rotation Range

Pan: 0 ̊–355 ̊; Tilt: 0 ̊–75 ̊; Rotation: 0 ̊–355 ̊

Focal Length

2.8 mm

Close Focus Distance

0.6 m (1.97 ft)/1.2 m (3.94 ft)/2.5 m (8.20 f

Smart Codec

Smart H.265+/Smart H.264+

Resolution

1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280
× 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/
CIF (352 × 288/352 × 240

Frame Rate

Main Stream: 1080P (1 fps–25/30 fps)
Sub Stream: D1 (1 fps–25/30 fps
Third Stream: 1080P (1 fps–6 fps

Day/Night

Auto(ICR)/Color/B/W

Power Supply

DC 12V (±30%), PoE (802.3af)

Power Consumption

<5.5W

Dimensions

Φ122 mm × 88.9 mm (4.80” × 3.50”)

Net Weight

0.46 kg (1.01 lb)

Gross Weight

0.62 kg (1.37 lb
