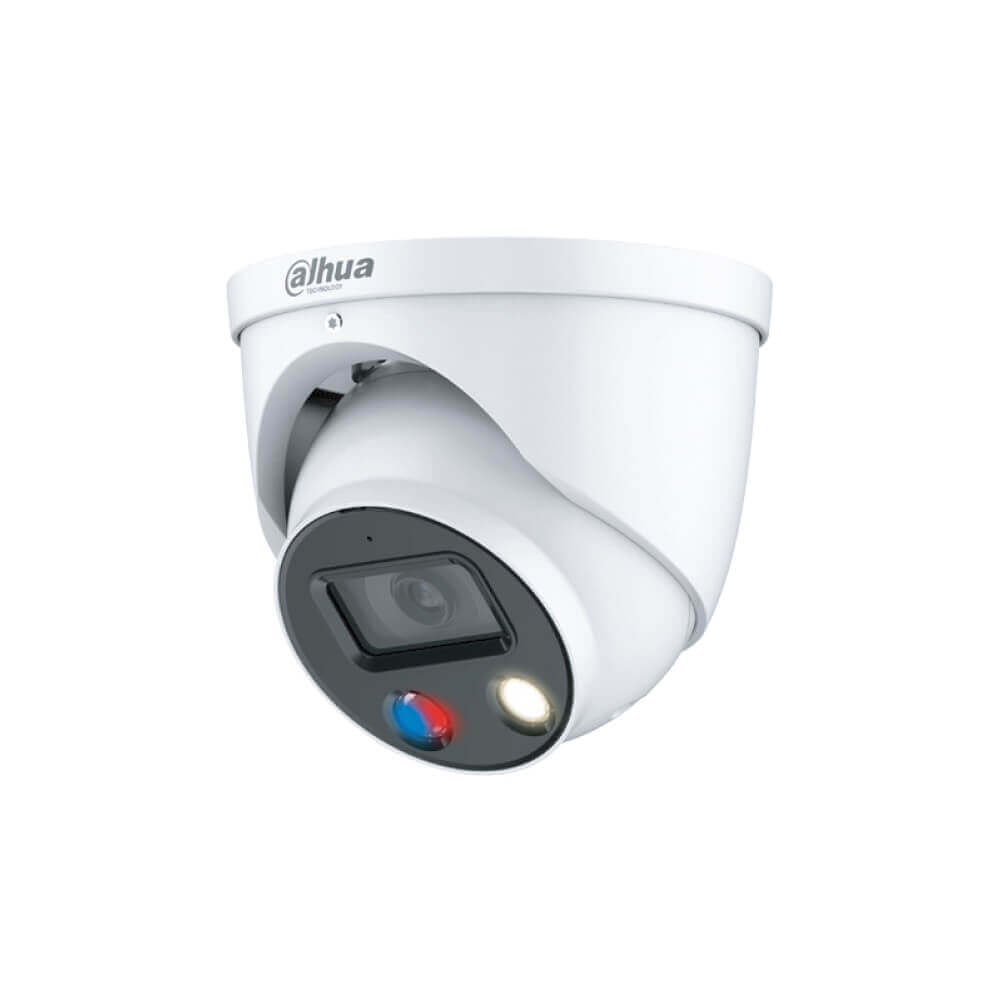

กล้องวงจรปิด IP AI อัจฉริยะ 2MP DH-IPC-HDW3249HP-AS-PV

Image Sensor

1/2.8" 2Megapixel progressive CMOS

Max. Resolution

1920(H) x1080(V)

RAM/ROM

512MB/128MB

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Min. Illumination

0.0015 Lux @F1.0

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/ Manual

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Focal Length

2.8 mm

Close Focus Distance

2.8 mm: 0.8 m (2.6 ft

Smart Codec

Smart H.265+/Smart H.264+

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Frame Rate

Main stream: 1920 × 1080 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-30 fps
Third stream: 1920 × 1080 @1-25/30 fp

Day/Night

Color/B/W

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 1.9W (12V DC); 2.55W (PoE)
Max. power consumption (WDR + H.265 + red and blue
lights flashing alternately + warm light + sound alarm):
6.1W (12V DC); 7.35W (PoE

Dimensions

Φ122.0 mm × 110.9 mm (Φ4.8" × 4.4

Net Weight

754 g (1.7 lb)

Gross Weight
