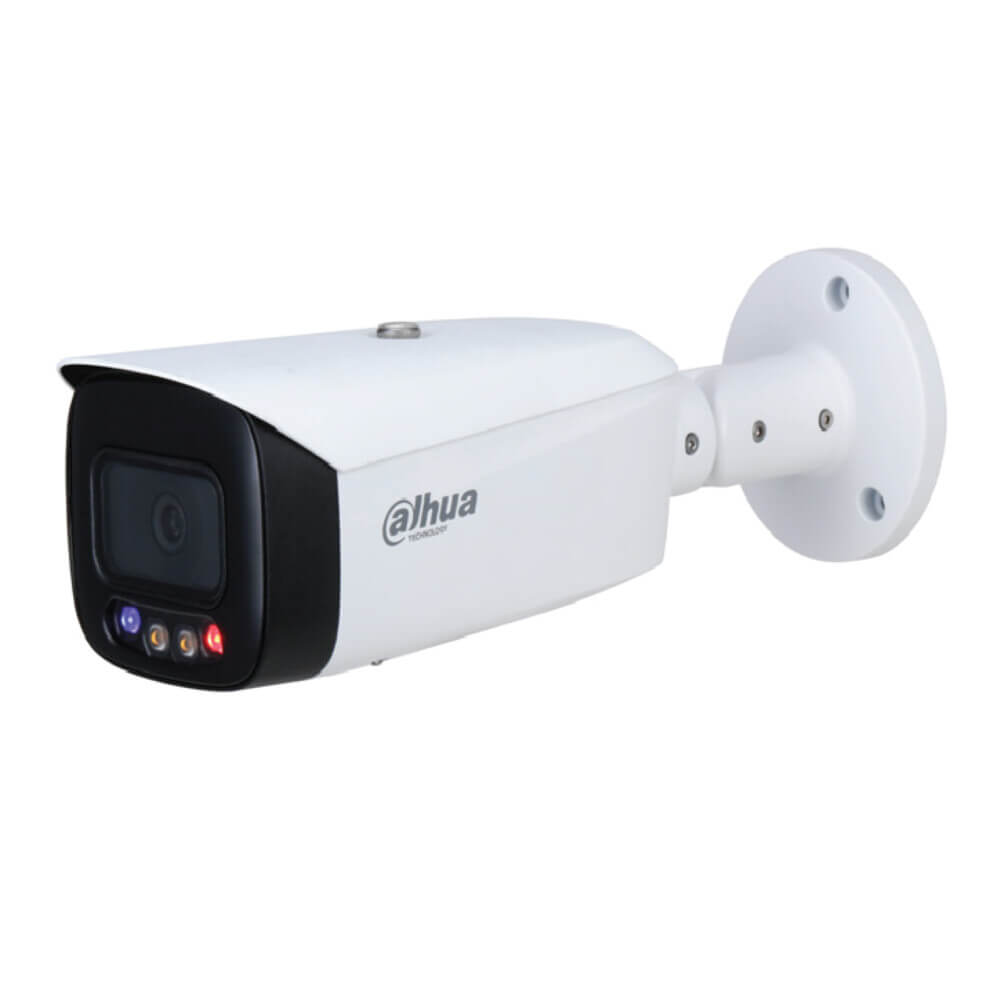

กล้องวงจรปิด IP AI อัจฉริยะ 2MP DH-IPC-HFW3249T1P-AS-PV

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Max. Resolution

1920(H) x1080(V)

RAM/ROM

512MB/128MB

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Min. Illumination

0.0015 Lux @F1.0

S/N Ratio

> 56 dB

Illumination Distance

40 m (131.2 ft)

Illuminator On/Off Control

Auto/ Manual

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Focal Length

3.6 mm

Close Focus Distance

3.6 mm: 1.5 m (4.9 ft

Smart Codec

Yes

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Frame Rate

Main stream: 1920 × 1080 @1-25/30 fps
Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-30 fps
Third stream: 1920 × 1080 @1-25/30 fps

Day/Night

Color/B/W

Power Supply

12V DC/PoE (802.3af)

Power Consumption

Basic power consumption: 1.8W (12V DC); 2.4W (PoE)Max. power consumption (H.265 + warm light + IVS + sound alarm + red and blue lights flashing alternately): 7.2W (12V DC); 8.5W (PoE)

Dimensions

288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H)

Net Weight

1.0 kg (2.2 lb)

Gross Weight

1.23 kg (2.7 lb)
