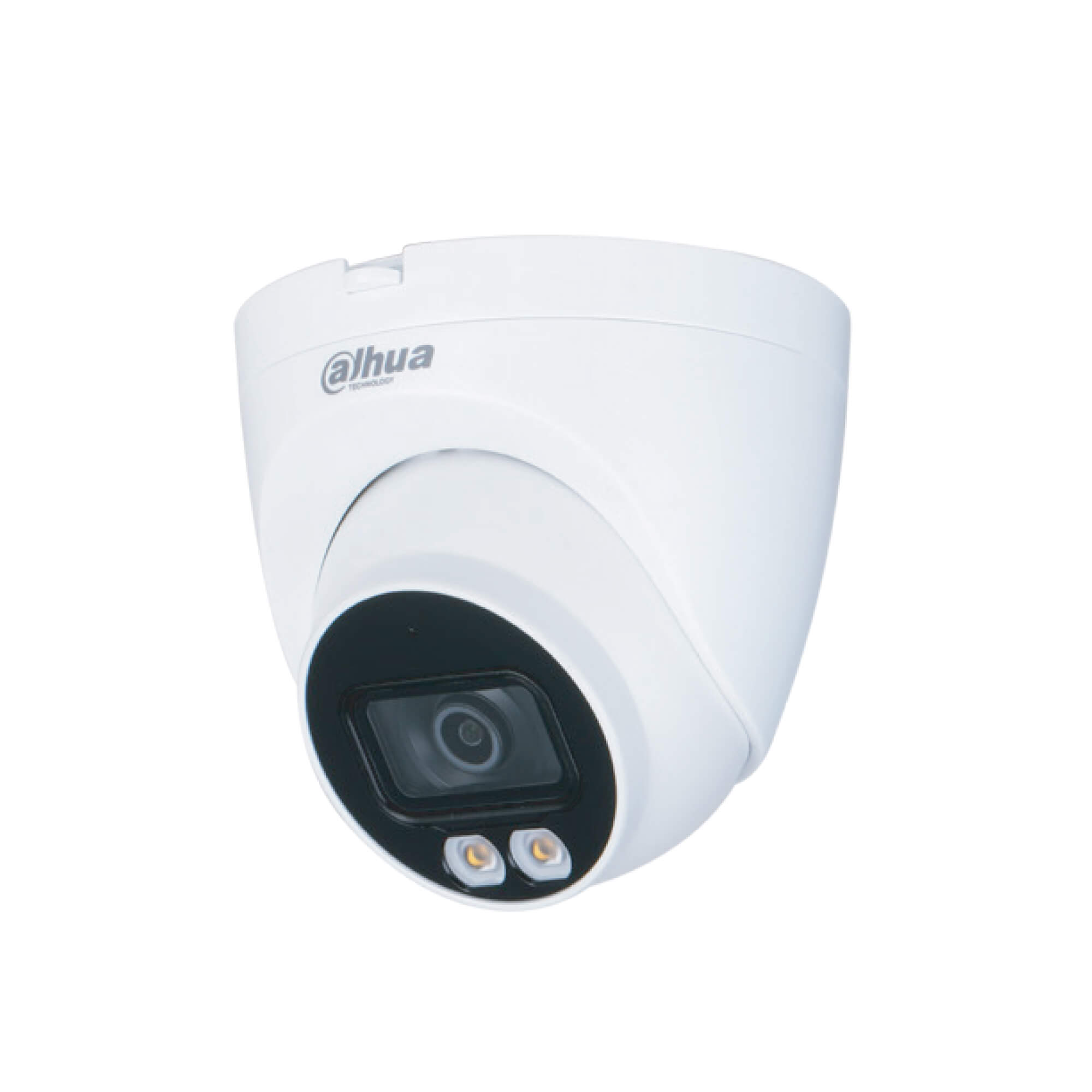

กล้องวงจรปิด IP 4MP DH-IPC-HDW2439TP-AS-LED-S2

Image Sensor

1/3” 4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

RAM/ROM

128 MB/128 MB

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.004 Lux@F1.0

Scanning System

Progressive

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Focal Length

2.8 mm
3.6 mm

Max. Aperture

2.8 mm: F1.0
3.6 mm: F1.0

Field of View

2.8 mm: Horizontal 96° × Vertical 51° × Diagonal 115°
3.6 mm: Horizontal 81° × Vertical 44° × Diagonal 97°

Close Focus Distance

2.8 mm: 1.3 m (4.3 ft)
3.6 mm: 1.8 m (5.9 ft)

Video Compression

H.265; H.264; H.264B; MJPEG(only supported by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 ×
1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352× 240)

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<7.4 W

Product Dimensions

100.9 mm × Φ109.9 mm (4.0" × Φ4.3")

Net Weight

0.365 kg (0.8 lb)

Gross Weight

0.527 kg (1.2 lb)
