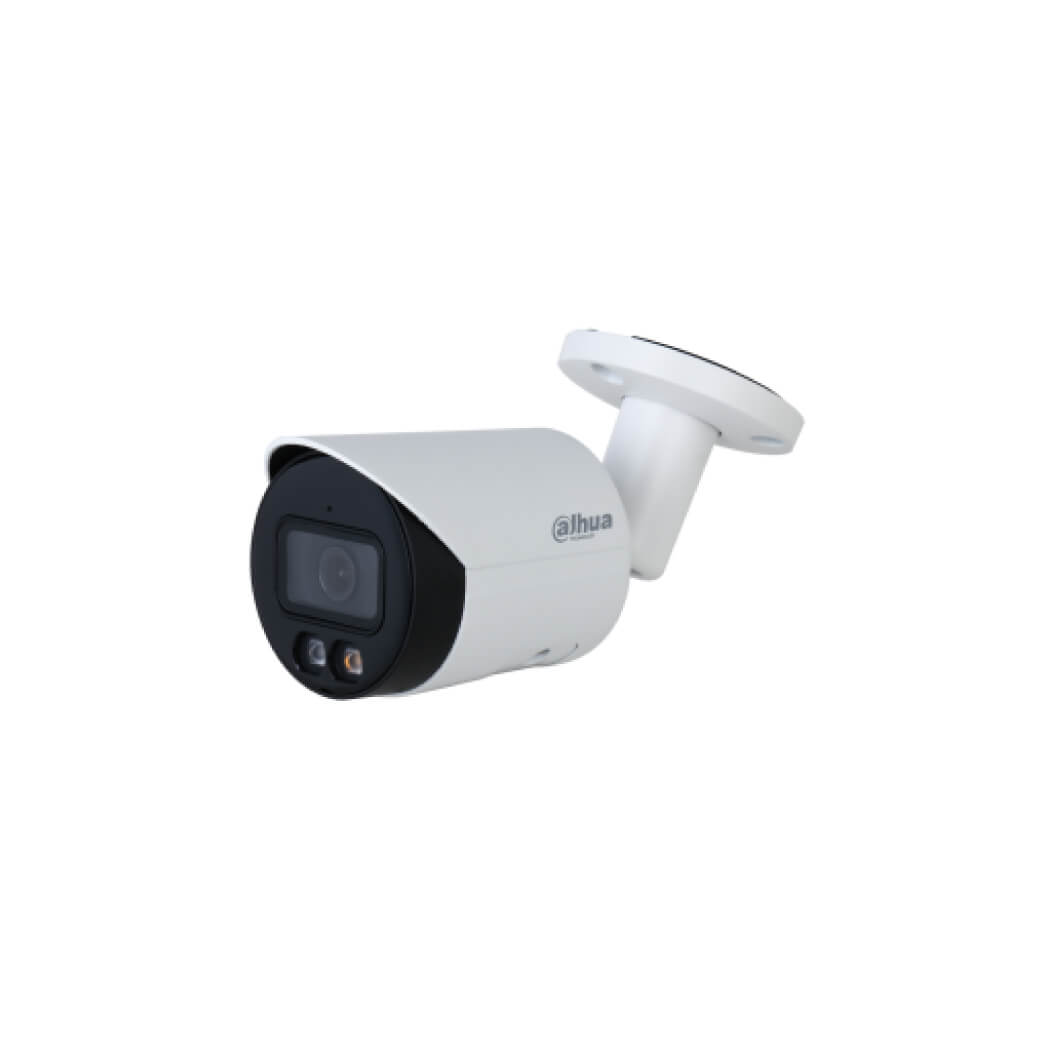

กล้องวงจรปิด IP 4MP DH-IPC-HFW2449SP-S-IL

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

RAM/ROM

128 MB/128 MB

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

Scanning System

Progressive

Illumination Distance

30 m (98.43 ft) (IR), 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto/Manual

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 95°; V: 52°; D: 114°;
3.6 mm: H: 78°; V: 41°; D: 94°

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft);
3.6 mm: 1.6 m (5.25 ft)

Video Compression

H.265; H.264; H.264B; MJPEG(only supported by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps)/2566 × 1440@ (1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30fps)
*The values above are the max. frame rates of each
stream; for multiple streams, the values will be subjected
to the total encoding capacity.

Resolution

4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Bit Rate

H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.1 W (12 VDC); 2.5 W (PoE)
Max. (H.265 + intelligence + WDR + warm light): 4.4 W
(12 VDC); 5.2 W (PoE)

Product Dimensions

166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L × W × H)

Net Weight

0.48 kg (1.06 lb)

Gross Weight
