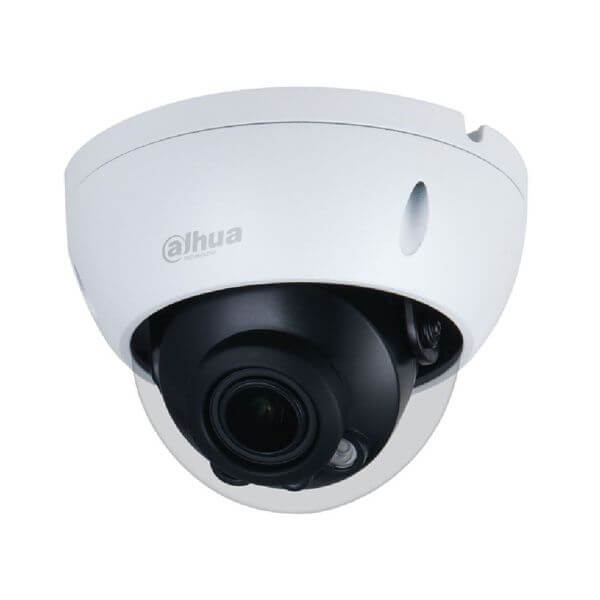

กล้องวงจรปิด โดม IP 5MP DH-IPC-HDBW2531R-ZAS-S2

Image Sensor

1/2.7” 5Megapixel progressive CMOS

Max. Resolution

2592 (H) × 1944 (V)

RAM/ROM

256 MB/128 MB

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.008 Lux@F1.5

Scanning System

Progressive

IR Distance

40 m (131.2 ft)

IR On/Off Control

Auto/Manual

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

Max. Aperture

F1.5

Field of View

Pan: 100°–26°
Tilt: 72°–20°
Diagonal: 133°–33°

Close Focus Distance

0.8m–0.8m (2.62 ft–2.62 ft)

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:
2592 × 1944 (1 fps-20 fps)
2688 × 1520 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Resolution

2592×1944(2592×1944); 2688×1520(2688×1520);3M(2048×1536); 2304×1296(2304×1296);
1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720);D1(704× 576/704×480); VGA(640×480);
CIF(352×288/352×240)

Video Bit Rate

H.264: 32 kbps–8192 kbps

H.265: 12 kbps–8192 kbps

Day/Night

Auto (ICR)/Color/B/W

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 8.0W

Product Dimensions

Φ122 mm × 88.9 mm (Φ4.80" × 3.50

Net Weight

0.47 kg (1.1 lb)

Gross Weight
