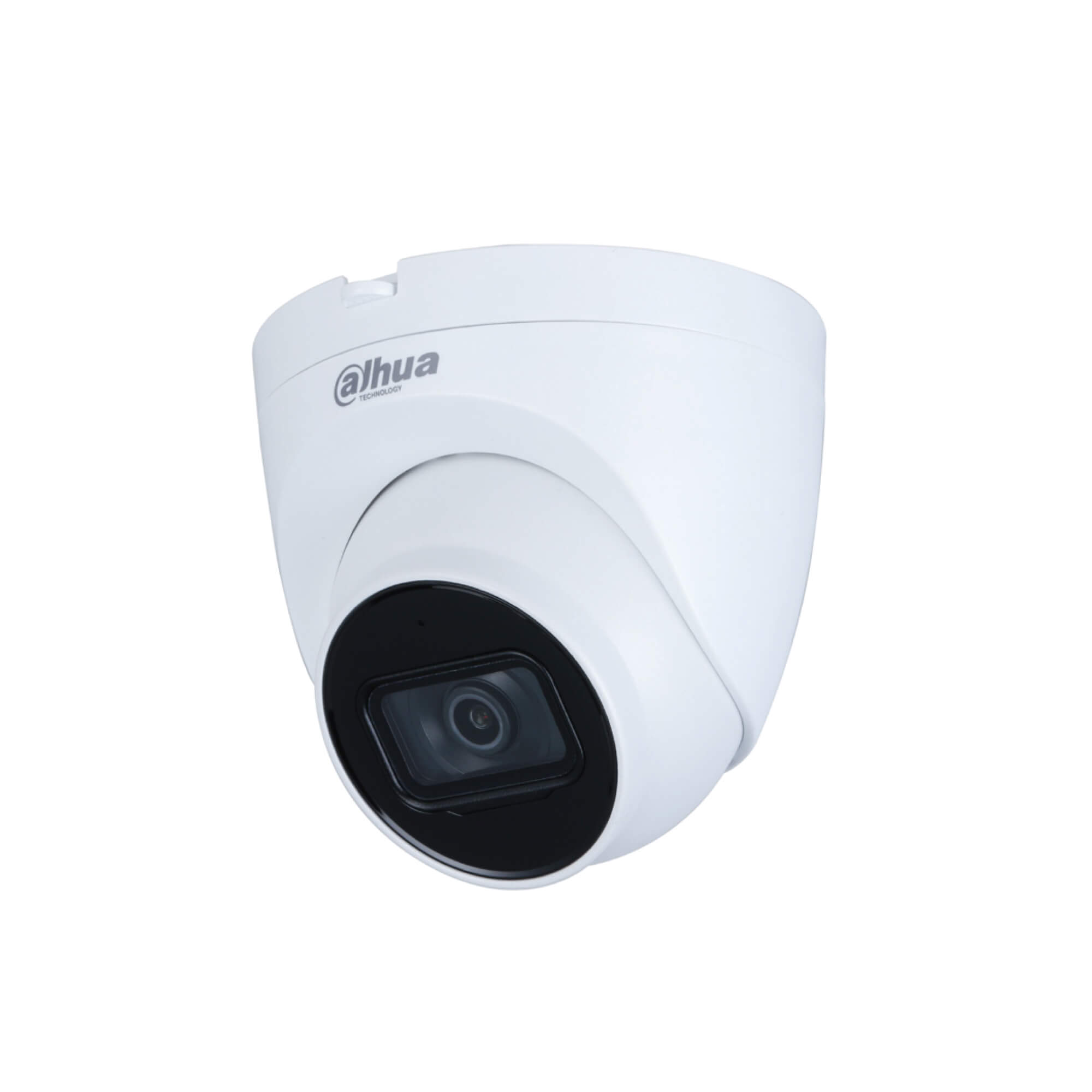

กล้องวงจรปิด IP 2MP DH-IPC-HDW2231TP-AS-S2

Image Sensor

1/2.8”2Megapixel progressive CM

Max. Resolution

1920(H) x1080(V)

RAM/ROM

128MB/128MB

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Min. Illuminat

0.002 Lux @F1.6

S/N Ratio

> 56 dB

Illumination Distance

30 m (98.4 ft

Illuminator On/Off Control

Auto/ Manual

Field of View

2.8 mm: Horizontal 106° × Vertical 56° × Diagonal 126°
3.6 mm: Horizontal 87° × Vertical 46° × Diagonal 104

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.6 m (2.0 ft)
3.6 mm: 1.2 m (3.9 f

IVS

Tripwire; intrusion

Video Compression

H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)

Frame Rate

Main stream:
1920 × 1080 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25fps)
704 × 480 (1 fps-30fps

Day/Night

Auto(ICR) / Color / B/W

Power Supply

12 V DC/PoE (802.3af)

Power Consumption

< 6.5W

Dimensions

100.9 mm × Φ109.9 mm (4.0" × Φ4.3

Net Weight

0.39 kg (0.9 lb

Gross Weight
