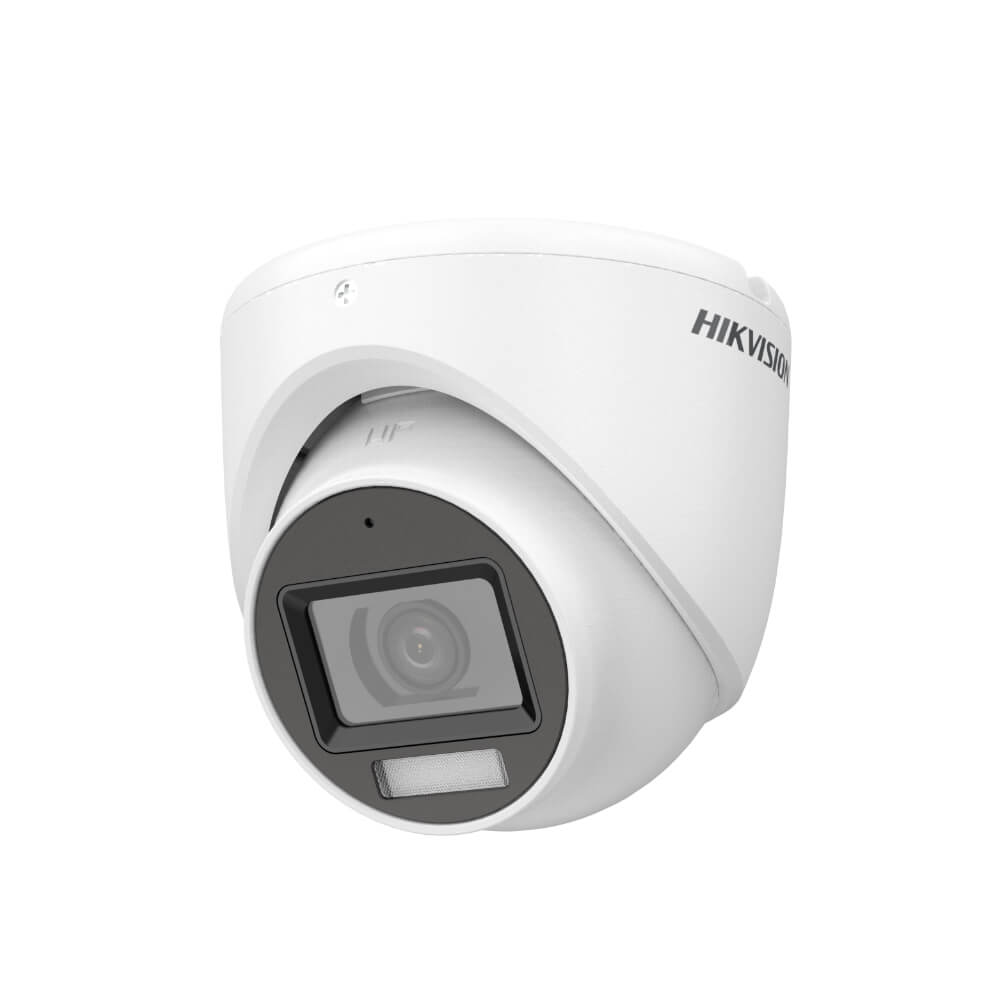

กล้องวงจรปิด Hikvision 5 ล้าน DS-2CE76K0T-LMFS

Image Sensor

3K CMOS

Signal System

PAL/NTSC

Resolution

2960 (H) × 1665 (V)

Frame Rate

TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC

Min. illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

Focal Length ＆ FOV

2.8 mm, horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
3.6 mm, horizontal FOV: 83°, vertical FOV: 48°, diagonal FOV: 102°

Illuminator Supplement Light Type

White Light,IR

Illuminator Supplement Light Range

IR : Up to 30 m
White Light : Up to 20 m

Image Settings

Brightness, Sharpness, Smart IR

Day/Night Mode

IR/White Light

Wide Dynamic Range (WDR)

Digital WDR

White Balance

Auto/Manual

AGC

Yes

Interface Video Output

Switchable TVI/AHD/CVI/CVBS

Power Supply

12 VDC ± 25%

Power Consumption

Max. 2.9 W

Protection Level

IP67

Dimensions

80 mm × Ø 85.1 mm (3.1" × Ø 3.4")

Weight

Approx. 300 g (0.66 lb.)
