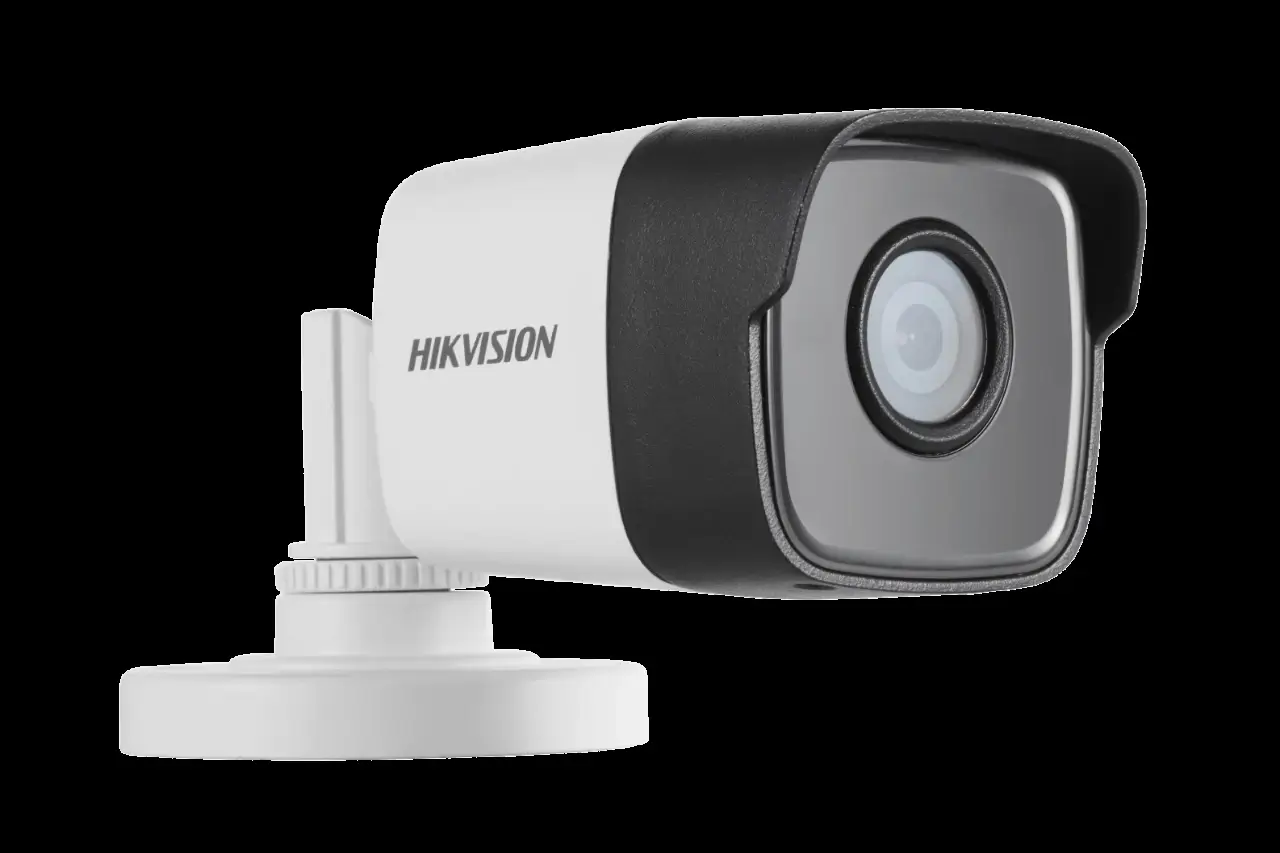

กล้องวงจรปิด Hikvision 2 ล้าน DS-2CE16D8T-ITF

Image Sensor

2.0 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

PAL: 1080p@25fps
NTSC: 1080p@30fps

Min. illumination

Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Horizontal Field of View

104° (2.8 mm), 79.1° (3.6 mm), 50.2°

Day & Night

IR cut filter

WDR (Wide Dynamic Range)

≥ 130 dB

Lens Mount

M12

Image Mode

STD/HIGH-SAT

AGC

Support

Day/Night Mode

Auto/Color/BW (Black White)

White Balance

Auto/Manual

AE (Auto Exposure) Mode

WDR/BLC/HLC/Global

Video Output

Switchable TVI/AHD/CVI/CVBS

Power Supply

12 VDC ± 25%

Power Consumption

Max. 3.4 W

Protection Level

IP67

Dimensions

58 mm × 61 mm × 163 mm (2.28" × 2.40" × 6.42")

Weight
