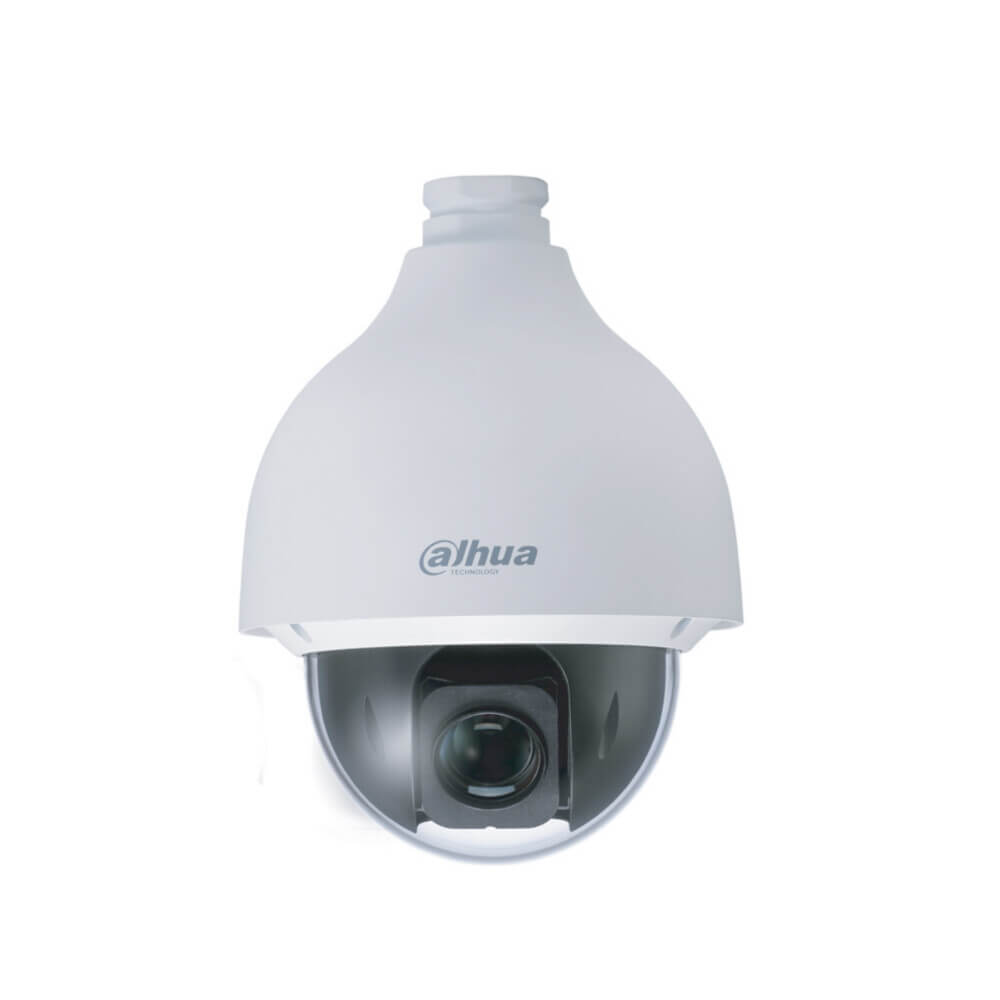

กล้องวงจรปิดภาพสี ปรับหมุนได้ Dahua 2MP DH-SD50232-HC-LA

Brand

Dahua

Model

DH-SD50232-HC-LA

Image Sensor

1/2.8" STARVIS™ CMOS

Max. Resolution

1920(H)×1080(V), 2MP

ROM

16 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s–1/100000 s

Min. Illumination

Color: 0.005 Lux@F1.6
B/W: 0.0005 Lux@F1.6

Focal Length

4.5 mm–144 mm

Max. Aperture

F1.6–F4.0

Field of View

H: 60.14°–2.75°; V: 34.41°–1.54°; D: 68.23°–3.16°

Optical Zoom

32x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

PTZ Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°,auto flip 180°

PTZ Manual Control Speed

Pan: 0.1°–350°/s; Tilt: 0.1°–250°/s

PTZ Preset Speed

Pan: 500°/s; Tilt: 500°/s

Presets

300

Speed Adjustment

Support

Power-off Memory

Support

Protocol

DH-SD
Pelco-P/D (auto recognition)

Resolution

1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)

Frame Rate

1080P (25/30 fps); 720P (25/30/50/60 fps)

CVI Product Output Mode

CVI; TVI; AHD; CVBS

Day/Night

Support

BLC

Support

WDR

120 dB

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Digital Zoom

16x

Flip

0°/180°

Audio Compression

G.711a; G.711Mu

Power Supply

DC 24V/2.5A ± 25%

Power Consumption

Basic: 15.5W
Max: 18.5W (fan enabled, PTZ rotating)

Protection

IP67; IK10; TVS 6000V lightning protection; surge protection

Dimensions

253.0 mm × Φ186.2 mm (9.96" × Φ7.33")

Net Weight
