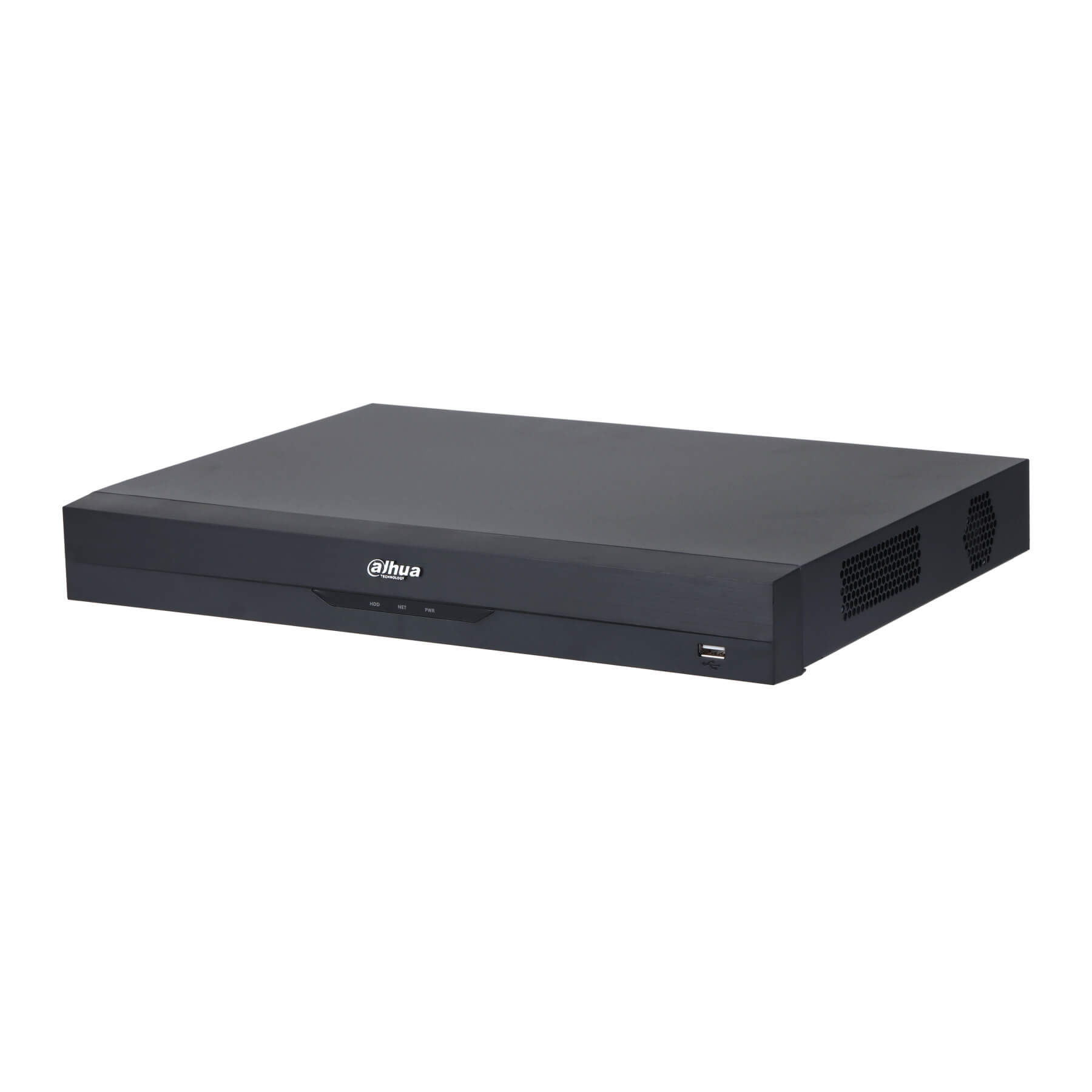

เครื่องบันทึก ระบบ AI DH-XVR5216AN-4KL-I3

Brand

Dahua

Model

DH-XVR5216AN-4KL-I3

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Analog Camera Input

16 channel BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps,720P@50/60fps, 720P@25/30fps.
2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps,720P@25/30fps.
3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps,720P@25/30fps.

IP Camera Input

Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be
disabled.

Encoding Capacity

Main stream: All channels 4K@(1-7fps); 6MP@(1-10fps); 5MP@(1-12fps); 4K-N/4MP/3MP@(1-15fps);
4M-N/1080P/720P/960H/D1/CIF(1fps–25/30fps);
Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps– 25/30fps)

Video Frame Rate

PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.

Video Bit Rate

32 kbps–6144 kbps per channel

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 Kbps

Video Output

1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Network Protocol

HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Ports Audio Input

1-channel RCA (external)
16-channel BNC (coaxial audio)

Ports Audio Output

1, RCA

Power Supply

12 VDC, 5 A

Power Consumption

Lower than 15 W(without HDD)

Net Weight

1.77 kg (3.90 lb)

Gross Weight

2.94 kg (6.48 lb)

Product Dimensions

1U, 375.0 mm × 289.4 mm × 53.0 mm (14.76" × 11.39" × 2.09") (W × D × H)
