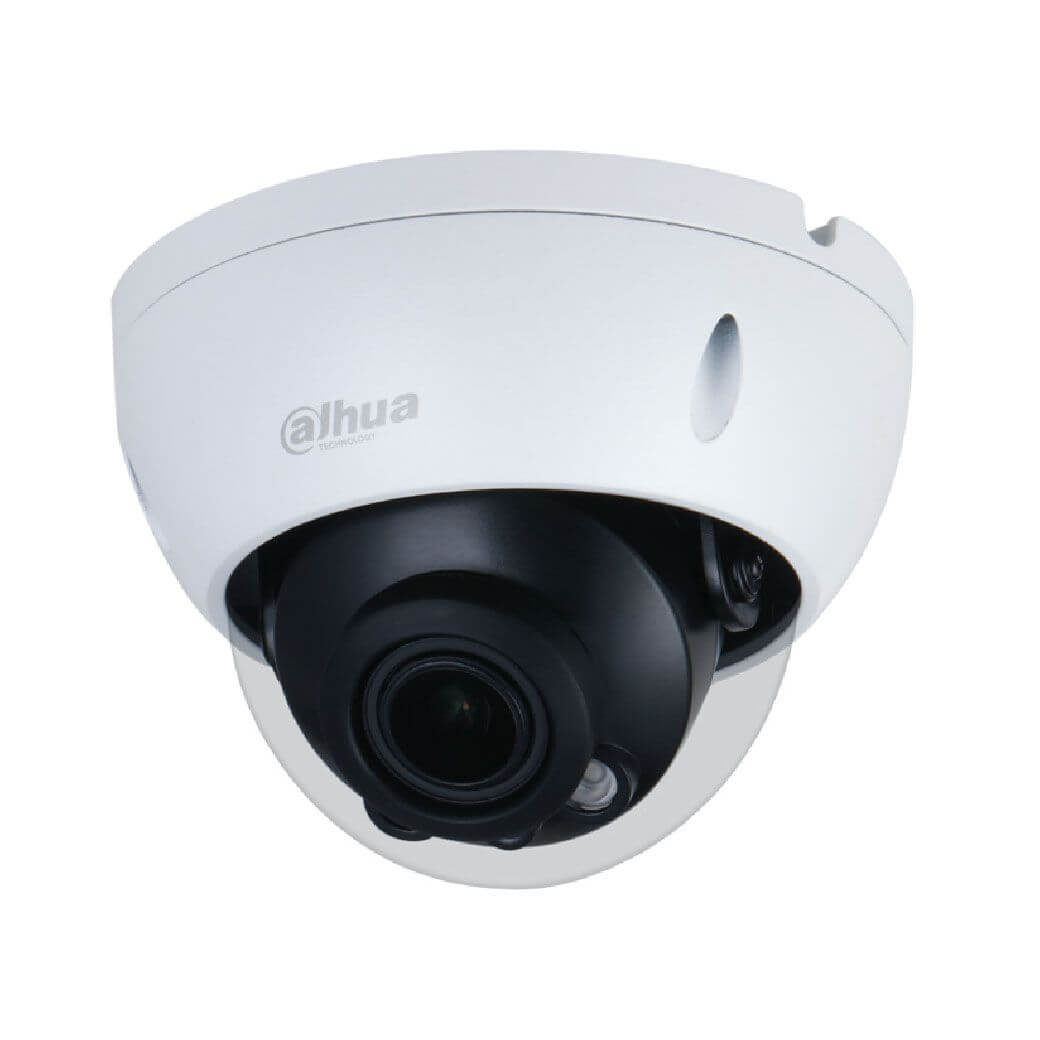

กล้องวงจรปิด IP 4MP DH-IPC-HDBW2431RP-ZAS-S2

Image Sensor

1/3” 4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

RAM/ROM

128 MB/128 MB

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.008 Lux@F1.5

Scanning System

Progressive

Illumination Distance

40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 104°–27°
Vertical: 55°–15°
Diagonal: 124°–31°

Close Focus Distance

0.8 m–0.8 m (2.62 ft–2.62 ft)

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Bit Rate

H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 6.5W

Product Dimensions

Φ122 mm × 88.9 mm (Φ4.80" × 3.50")

Net Weight

Gross Weight

0.63 kg (1.39 lb)
