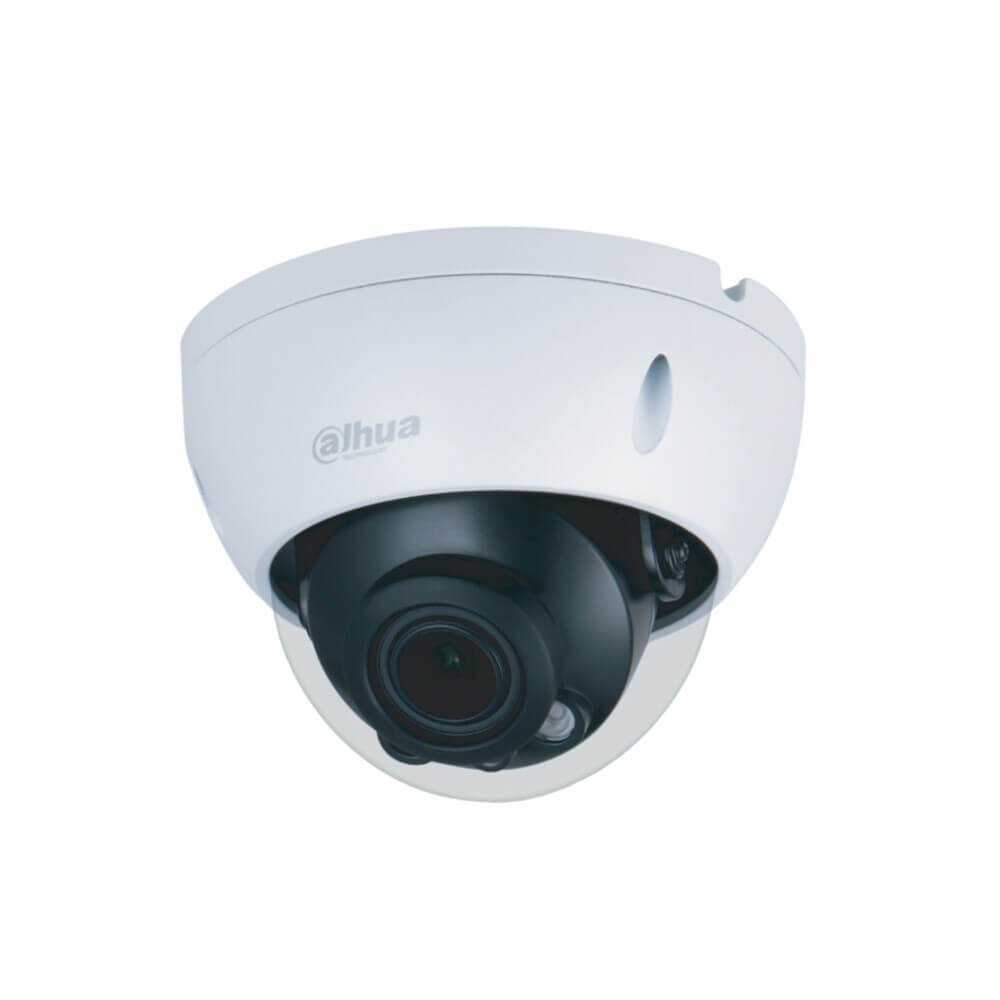

กล้องวงจรปิด IP 4MP DH-IPC-HDBW2431EP-S-S2

Image Sensor

1/3” 4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

RAM/ROM

128 MB/128 MB

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.008 Lux @ F1.6

Scanning System

Progressive

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto/Manual

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm:
Horizontal 102.0° × Vertical 55.0° × Diagonal 121.0°
3.6 mm:
Horizontal 84.0° × Vertical 45.0° × Diagonal 100.0°

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)

Video Compression

H.265; H.264; H.264B; MJPEG (only supported by the
sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440);
2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M
(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×
480); VGA (640 ×480); CIF (352 × 288/352 × 240)

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5.2W

Product Dimensions

81 mm × Φ109.9 mm (3.19" × Φ4.33")

Net Weight

0.350 kg (0.77 lb)

Gross Weight
