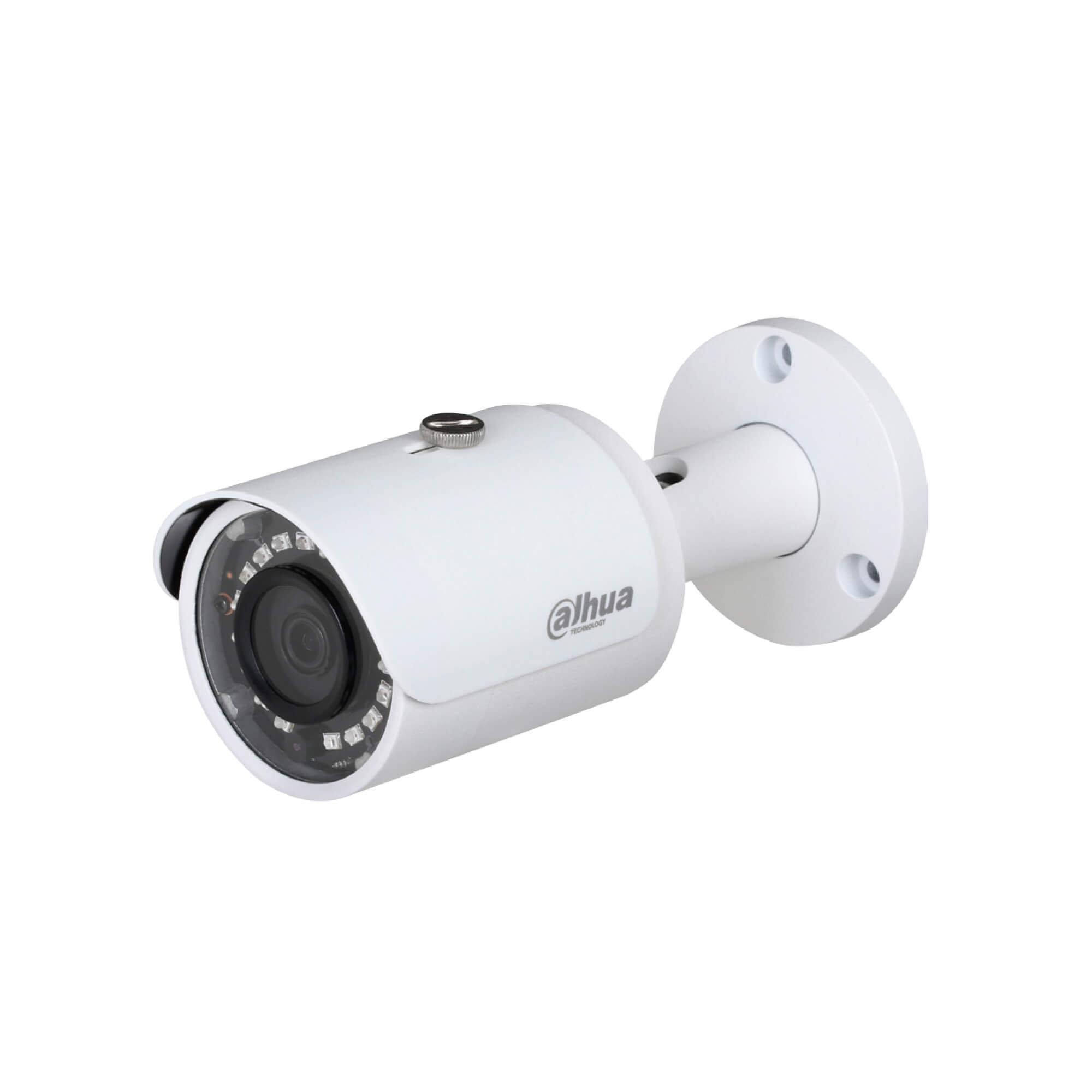

กล้องวงจรปิด IP 2MP DH-SF125-S2

Image Sensor

1/2.7” 2Megapixel progresive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

256MB/32MB

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.08 Lux/F2.0( Color )
0.04 Lux/F2.0( Black&White )
0 Lux/F2.0( Black&White , IR on )

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

Angle of View

H:104°/92°,V:55°/50

PTZ Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Compression

H.265/H.264/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Resolution

1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/
VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fp

Day/Night

Auto(ICR) / Color / B/W

Power Supply

DC12V, PoE (IEEE802.3af)(Class 0)

Power Consumption

<5.5W

Dimensions

Φ70mm×164.7mm(2.76''x6.49'')

Net Weight

0.38Kg(0.84lb)

Gross Weight
