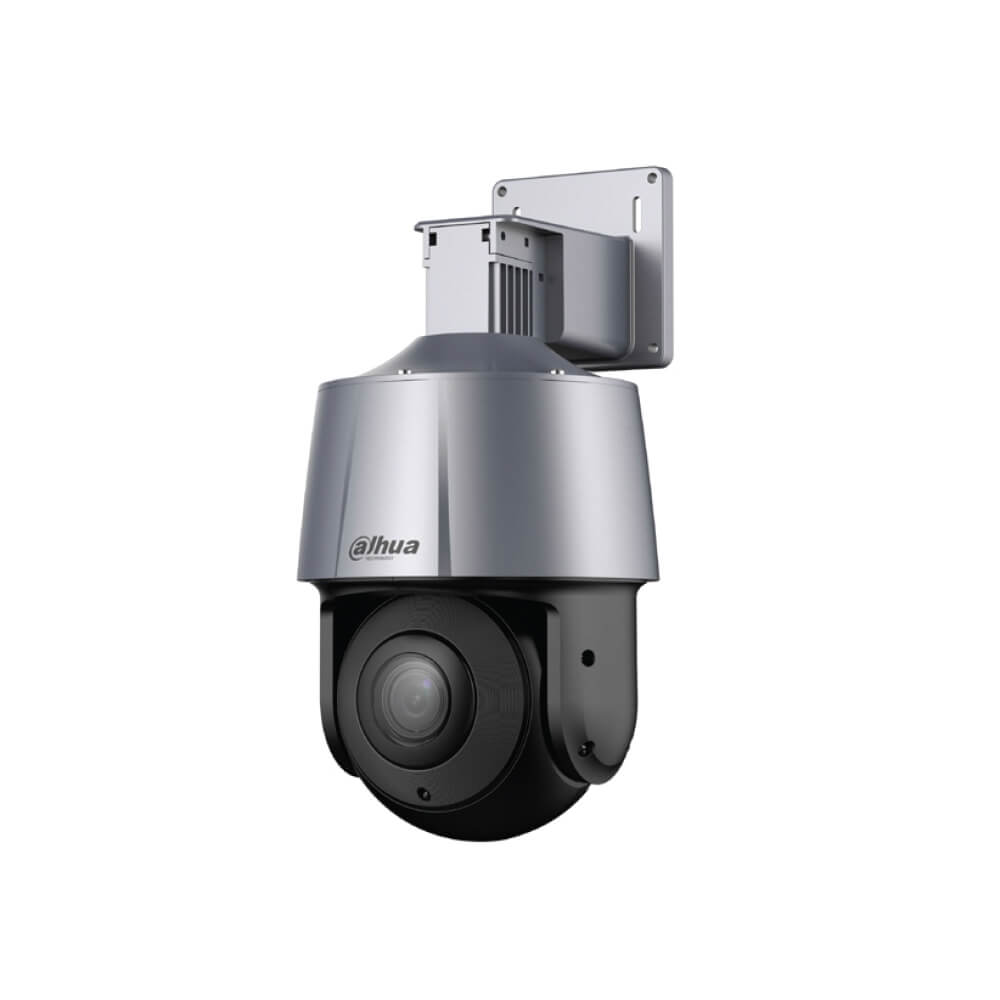

กล้องวงจรปิด IP 2MP แบบ PTZ DH-SD3A205-GNP-PV

Image Sensor

1/2.8" CMOS

Max. Resolution

1920(H) x1080(V)

RAM/ROM

512MB/256MB

Electronic Shutter Speed

1/3 s–1/100000 s

Min. Illumination

Color: 0.002 Lux@F1.8
B/W: 0.0002 Lux@F1.8
0 Lux (illuminator on)

Scanning System

Progressive

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Manual/SmartIR/Off

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.8–F3.3

Field of View

H: 101.6°–33.5°; V: 52°–18.7°; D: 124.7°–38.5°

Close Focus Distance

1.2 m (3.94 ft)

Pan/Tilt Range

Pan: 0°–355°
Tilt: -15°–+90°

Manual Control Speed

Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–56°/s

Preset Speed

Pan: 81°/s; Tilt: 43°/s

Compression

H.265; H.264B; H.264M; H.264H; MJPEG; MJPEG (Sub
Stream); H.265+; H.264+

Resolution

1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Frame Rate

Main stream: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)

Power Supply

12V DC/2A ± 10% (supports PoE)

Power Consumption

Basic: 5W
Max: 12W (illuminator on)

Product Dimensions

271.7 mm × 142.5 mm × 124.1 mm (10.70" × 5.61" × 4.89")

Net Weight

1.1 kg (2.43 lb)

Gross Weight
