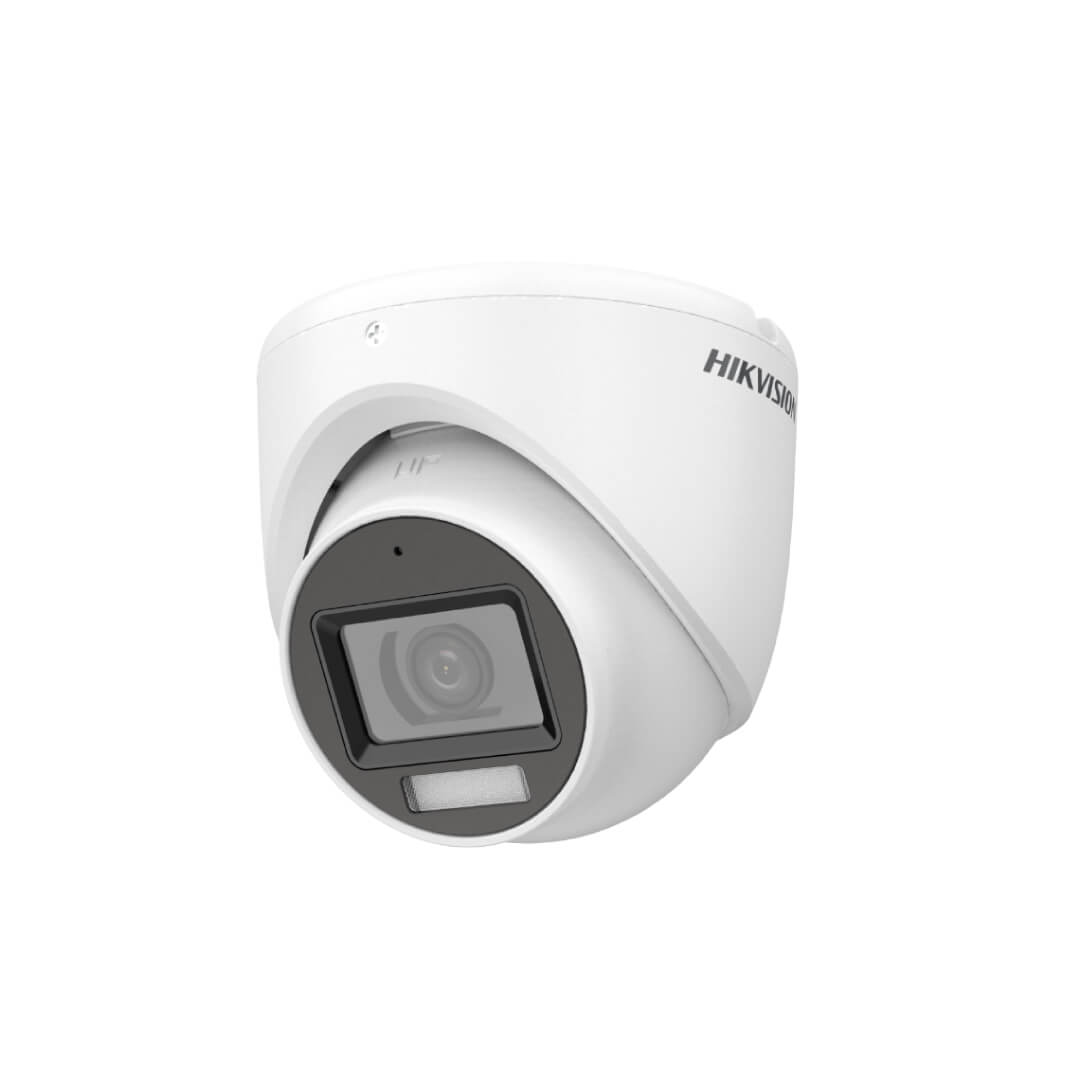

กล้องวงจรปิด โดม มีไมค์ Hikvision 2 ล้าน DS-2CE76D0T-LMFS

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Resolution

1920 (H) × 1080 (V)

Frame Rate

TVI: 1080P @ 30 fps, 1080P @ 25 fps
AHD: 1080P @ 30 fps, 1080P @ 25 fps
CVI: 1080P @ 30 fps, 1080P @ 25 fps
CVBS: PAL/NTSC

Min. illumination

0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s

Focal Length & FOV

2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°
3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°

Day & Night

ICR

WDR (Wide Dynamic Range)

Digital WDR

Lens Mount

M12

Image Settings

Brightness, Sharpness, Smart IR

Image Enhancement

Yes

Day/Night Mode

IR/White Light

White Balance

Auto/Manual

AGC

Yes

Video Output

Switchable TVI/AHD/CVI/CVBS

Power Supply

12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 3.3 W

Protection Level

IP67

Dimensions

80 mm × Ø 85.1 mm (3.1" × Ø 3.4")

Weight
