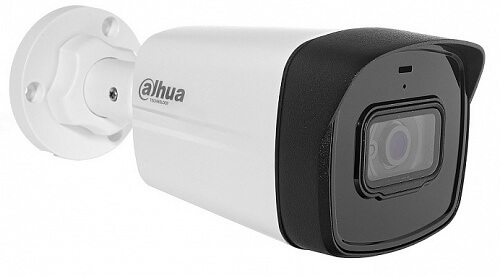

กล้องวงจรปิด มีไมค์ Dahua 8MP DH-HAC-HFW1800TLP-A

Brand

Dahua

Model

DH-HAC-HFW1800TLP-A

Image Sensor

1/2.7 inch CMOS

Effective Pixels

3840 (H) × 2160 (V), 4K

Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

Fill Light Working Distance

80m(262.5ft)

IR On/Off Control

Auto; manual

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens Type

Fixed-focal

Focal Length

2.8mm; 3.6mm

Angle of View

2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical)
3.6mm: 104° x 87° x 47° (diagonal x horizontal x vertical

Frame Rate

CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps;AHD: 4K@15fps;T VI: 4K@15fps;CVBS: 960H

Resolution

4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Power Supply

12V ±30% DC

Power Consumption

Max 6W (12V DC, IR on)

Dimensions

198.9mm×80.2mm×76.2mm(7.83”×3.16”×3.0”)

Net Weight

0.28Kg (0.62lb)

Gross Weight
