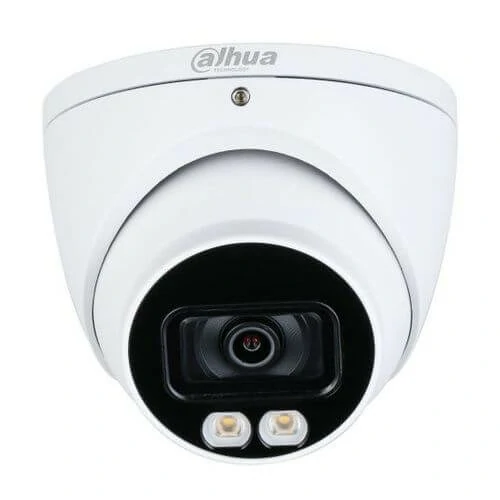

กล้องวงจรปิดโดม มีไมค์ ภาพสี Dahua Full Color 2MP DH-HAC-HDW2249TP-A-LED

Brand

Dahua

Model

DH-HAC-HDW2249TP-A-LED

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Electronic Shutter Speed

PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s

Minimum Illumination

0.001Lux/F1.0, 0Lux LED on

S/N Ratio

More than 65dB

LED Distance

40m(131ft)

LED On/Off Control

Auto/Manua

Lens Type

Fixed lens / Fixed iris

Focal Length

3.6mm

Angle of View

H: 89.5° (53.8°); V: 47.3° (30°)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720

Video Output

1-channel BNC high definition video output / CVBSvideo output (DIP switch)

Day/Night

Color

BLC Mode

BLC / HLC / WDR

WDR

120dB

Power Supply

12V DC ±30%

Power Consumption

Max. 6.6W (12V DC, LED on)

Dimensions

Φ106mm×99.2mm (Φ4.17"×3.9")

Net Weight

0.48kg (1.05lb)

Gross Weight

0.65kg (1.43lb)
